756-0627B-MTDDECKREBUILDKIT - Deck Rebuilt Kit

Models This Part Fits:

13AD609G063, 13AG609G063, 13AJ609G766

Additional Information:

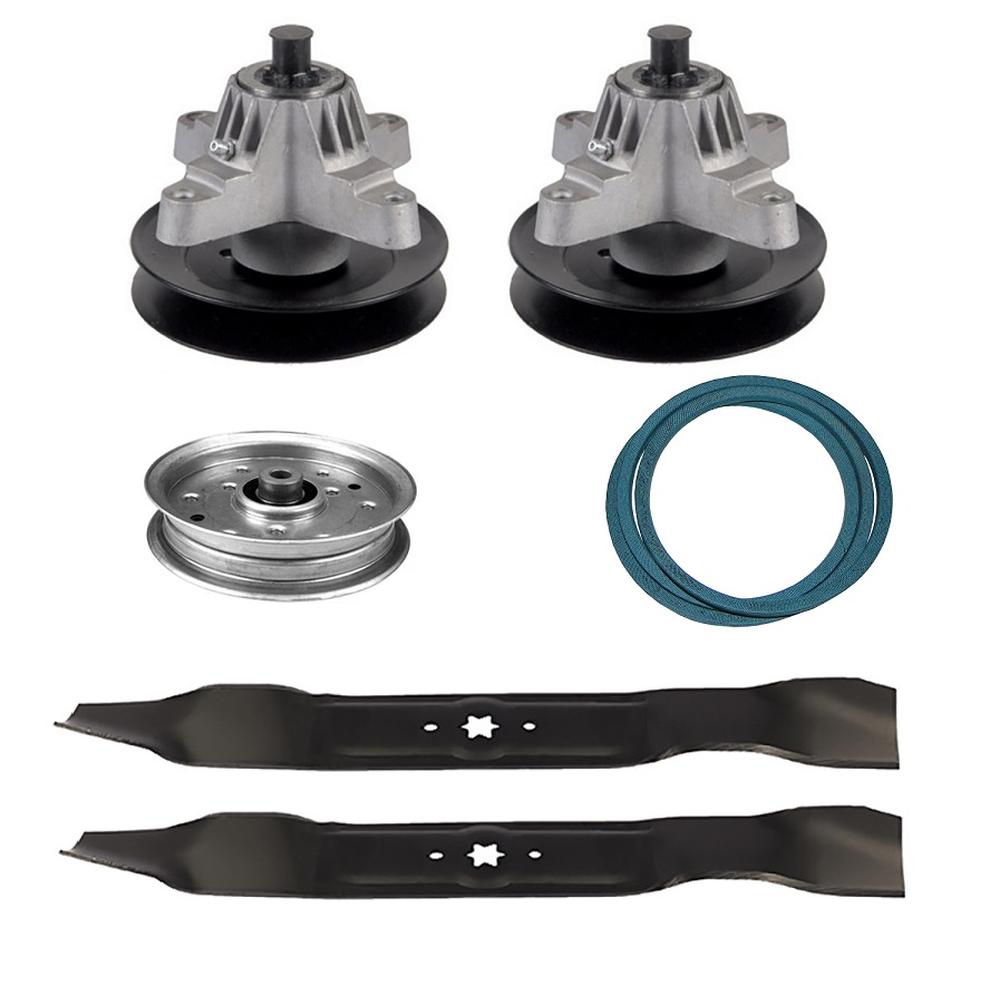

Kit Contains: (2) Mulching Blade C to C: 2-1/2" Center Hole: 6-Point Star Length: 21-3/16" Outer Hole Dia.: 5/16" Thickness: 0.156" Type: High Lift - Notched Cut Direction: Right Width: 3" (2) Blades Required for 42" Cut Replaces Part Number(s): 942-04126, 742-04126, 742-0616, 942-0616A, 742-0616A (2) Spindle Assembly 6 Point Star Center Hole Replaces Part Number(s): 918-0574, 618-0574, 918-0565, 618-0565, 918-0574C (1) Flat Idler Pulley I.D.: 3/8" O.D.: 4-1/8" Height: 1-3/64" Replace Part Number(s): 956-0365, 756-0365, 756-0627D, 956-0627D (1) Deck Drive Belt Length: 67” Width: 1/2” Fits 42” Decks Replaces Part Number(s): 954-0498, 754-0498

Reference Numbers:

618-0574, 618-0574-A, 754-0498, 756-0627B, 942-0616

Product Category:

Lawn & Garden
View More: Lawn & Garden Replacement Parts

Product Sub Group:

Deck Components
View More: Deck Components Replacement Parts
