Muffler Assembly Kit Fits Massey Ferguson Replaces 181461M91

Models This Part Fits:

TO20, TO30, TE20

Additional Information:

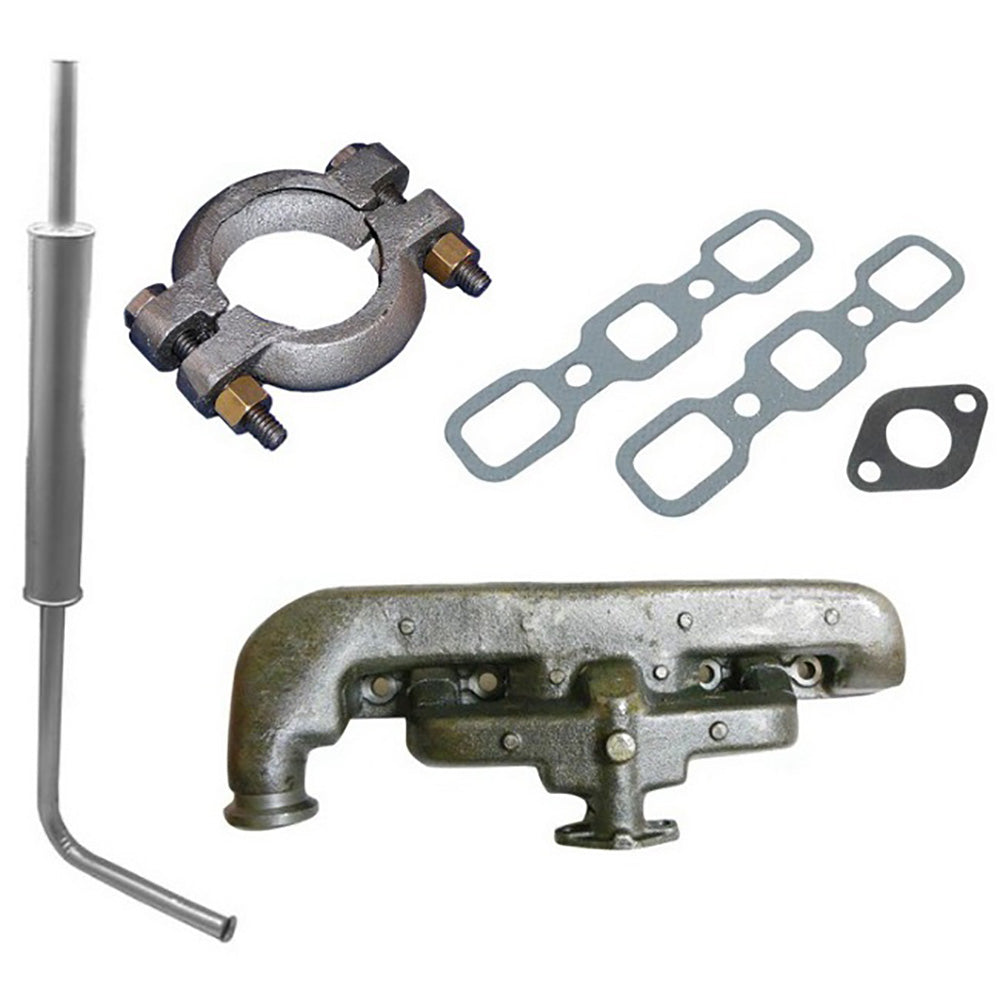

(1) Muffler & Pipe Assembly Body Style One piece welded assembly Clamp Not Included Inlet: 1 3/8" Length: 53" Material: Aluminum Outlet: 2" Type Horizontal Replaces Part Numbers: 8N5230, ECON5230AADS (1) Muffler Clamp Kit Comes with Clamps, Nuts, Bolts, and Lock Washers Inner Diameter: 1 3/8" Replaces Part Numbers: CAPN5200A (1) Manifold The center to center bolt holes are 2 1/2" on the flange The Inner Diameter on the flange is 1" The exhaust is 1 3/16" Inner Diameter and 2 1/16" Outer Diameter Overall length is 17" Approximately Replaces Part Numbers: 9N9425WG (1) Carburetor to Manifold Gasket 2-7/8" x 1-34" 2-1/4" Center to Center Replaces Part Numbers: 15162A, 1506634M1, 181531M2 (2) Manifold Gaskets Replace Part Number: 9N-9448

Reference Numbers:

MCK-2, 181461M91
